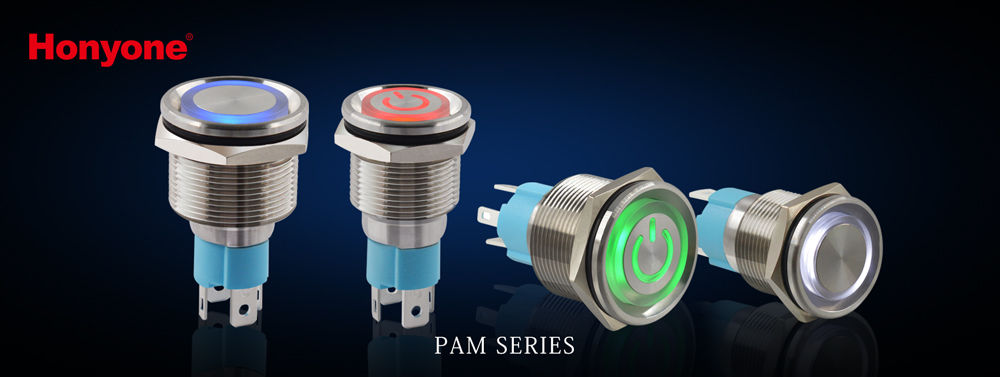

HONYONE recently launched the big current PAM series (IP67 waterproof with light) metal button switch
With the wide application of metal button switches in household appliances, product testing equipment, medical equipment and consumer electronics market, HONYONE has been constantly innovating in response to the requirements of market customers. In the field of large current applications, manulife has been in the forefront of the industry.
Since its establishment in 1998, HONYONE has been committed to the research and development work in the field of large current switches and has accumulated a large number of application data and case analysis solutions. The company has UL approved laboratory equipment for testing large current load life.At present the domestic market metal button switch manufacturer is numerous, but the quality is uneven. Most metal button switches claim an electrical load of 5A 250VAC, but the measured current of only 3A does not pass.
HONYONE recently launched PAM series, which can fully pass the current of 10A 250VAC after repeated sampling test and verification by UL load tester.
What are the differences between the manulife PAM series metal button switches and the common metal button switches on the market?
1. Waterproof, explosion-proof and corrosion-resistant: high grade waterproof IP67, with excellent water-proof panel and anti-riot function; SUS316 stainless steel, wear - resistant and corrosion - resistant.
2. Real large-current button switch: rated 10A 250VAC, high-current, anti-inrush current overload up to 60A 250VAC.
3. Long life: 20,000 times of electrical load life and 50,000 times of mechanical life.
4. Multi-function: on-off self-locking function, off-(ON) reset function.
5. LED wide voltage multiple styles: also available with LED indicator light, independent LED foot, ac-dc universal LED twin-crystal lamp body, lamp voltage 3v-250vac wide voltage use, single and two-color lights optional.
6. Harsh environment available: the ambient temperature is -40 c to 105 c. High seismic rating.
7. Save installation space, convenient and quick to use: integrated design saves installation space, 250 quick plug terminal, convenient connection.
8. Unique design: the novel button panel design increases the hand pressure area, which is more in line with the operation requirements of the equipment.
Application field of PAM series products:
◆Power adapter button for home appliances.
◆Rail transit, Marine equipment, vehicle electrical appliances. Communication network equipment.
◆Medical equipment, b-ultrasound machine, endoscope.
◆Uav field, outdoor lighting. Submersible pump application.
