PRODUCT MODEL:RS-7-R1-2-Q
RS-7-R1-2-Q
PRODUCT SPECIFICATION:
Contact Rating: 3A @125 VAC or 28 VDC (Q terminal)
Electrical Life: 30,000 make and break cycles at full load
Contact Resistance: 20 mΩ max. initial @2-4 VDC,100 mA
Insulation Resistance: 1,000 MΩ min.
Dielectric Strength: 1,500 V RMS @ sea level.
Operating Temperature: -30°C to 85°C
CASE: diallyl phthalate (DAP)(UL94V-0)
ACTUATOR: Nylon, black standard
BUSHING: Copper alloy, nickel plated
HOUSING: Stainless Steel
CONTACT & TERMINAL: Copper alloy, silver plated
SWITCH SUPPORT: Copper alloy, tin-plated
Electrical Life: 30,000 make and break cycles at full load
Contact Resistance: 20 mΩ max. initial @2-4 VDC,100 mA
Insulation Resistance: 1,000 MΩ min.
Dielectric Strength: 1,500 V RMS @ sea level.
Operating Temperature: -30°C to 85°C
CASE: diallyl phthalate (DAP)(UL94V-0)
ACTUATOR: Nylon, black standard
BUSHING: Copper alloy, nickel plated
HOUSING: Stainless Steel
CONTACT & TERMINAL: Copper alloy, silver plated
SWITCH SUPPORT: Copper alloy, tin-plated
Application：
取暖器 heater電風扇 Electric fan
監控攝像頭 Surveillance camera
冰箱 refrigerator
空調air conditioning
轉向射燈 to shoot the light
洗衣機 washing machine
飲水機等家用電器 water dispenser
其他機械設備Other mechanical equipment

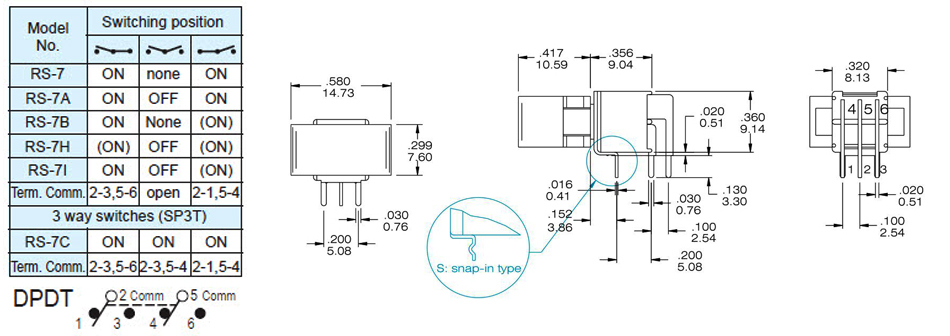

DRAWING
ORDER CODING DIAGRAM
