CLASSIFICATION
PRODUCT MODEL:TM16-11-RRGB12-S03
TM16-11-RRGB12-S03
PRODUCT SPECIFICATION:
Rating: 5A 3-250V AC/DC ;
Degree of protction:lP67;
Contact Resistance: 50mΩ Max. ;
Dielectric Strength:1000VAC For 1 minute ;
Total Travel: 1.2± 0.4mm ;
Operating Force:2± 0.2N ;
Load Life:50,000 cycles ;
Operating Temperation:-25° C~55° C;
Function: OFF-ON
Degree of protction:lP67;
Contact Resistance: 50mΩ Max. ;
Dielectric Strength:1000VAC For 1 minute ;
Total Travel: 1.2± 0.4mm ;
Operating Force:2± 0.2N ;
Load Life:50,000 cycles ;
Operating Temperation:-25° C~55° C;
Function: OFF-ON
Application：
取暖器 heater電風扇 Electric fan
監控攝像頭 Surveillance camera
冰箱 refrigerator
空調air conditioning
轉向射燈 to shoot the light
洗衣機 washing machine
飲水機等家用電器 water dispenser
其他機械設備Other mechanical equipment

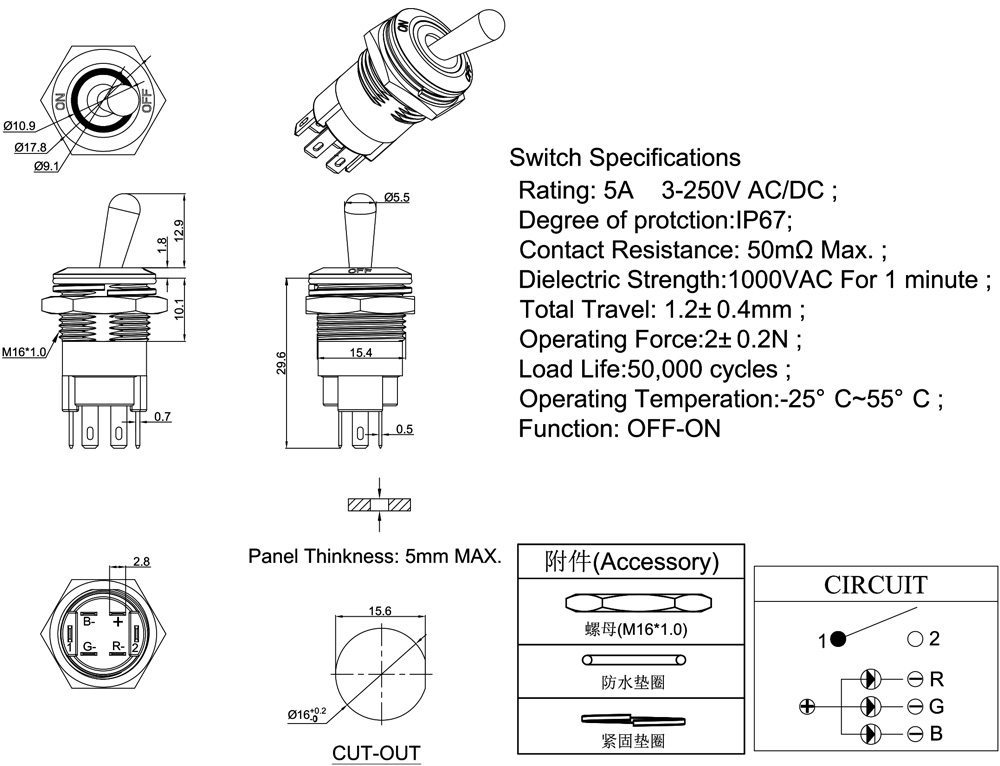

DRAWING
ORDER CODING DIAGRAM
