CLASSIFICATION
PRODUCT MODEL:PB11-1-10-0NR
PB11-1-10-0NR
PRODUCT SPECIFICATION:
Rating: 0.2A 36VDC
Contact Resistance: 50mΩ Max.
Insulation Resistance:100MΩ Min.
Dielectric Strength:AC 500V 1 minute
Total travel:1 .8±0.3mm
Operating Force:200±100gf
Mechanical Life: Over 30,000 cycles
Electrical Life: Over 10,000 cycles
Operating Temperature:-20°C~+85°C
Manual Welding:350°C for 3 Seconds
Function: OFF - (ON)
Contact Resistance: 50mΩ Max.
Insulation Resistance:100MΩ Min.
Dielectric Strength:AC 500V 1 minute
Total travel:1 .8±0.3mm
Operating Force:200±100gf
Mechanical Life: Over 30,000 cycles
Electrical Life: Over 10,000 cycles
Operating Temperature:-20°C~+85°C
Manual Welding:350°C for 3 Seconds
Function: OFF - (ON)
Application：
APPLICATIONS / MARKETS應用市場
Computer Servers/peripherals電腦服務器/外設
Performance Audio 專業(yè)音響
Instrumentation 儀器儀表
Telecommunications/networking 電信網(wǎng)絡設備

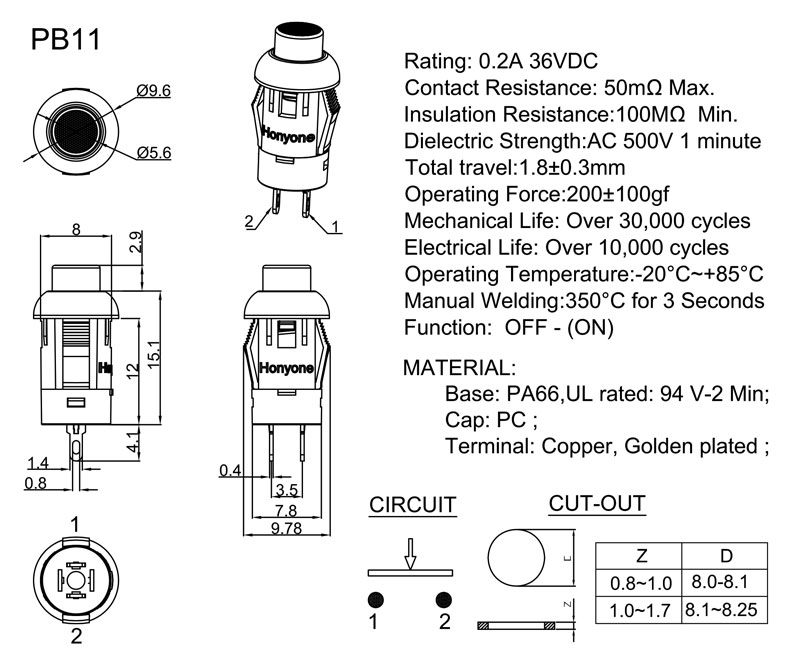

DRAWING
ORDER CODING DIAGRAM
