CLASSIFICATION
PRODUCT MODEL:PB12B-M-1B-NN
PB12B-M-1B-NN
PRODUCT SPECIFICATION:
Cycles:500,000 Actuations
OperatingTemperature:-40Cto+80°c
Shock: 10oG\’s/6 Milliseconds
Rating at 24VDC: 150 Milliamps
Voltage Breakdown: 1000VAC between mutually
insulated parts
Contact Resistance:25 milliohms max on newswitch
lnsulation: 1,000 megaohms minimum
OperatingTemperature:-40Cto+80°c
Shock: 10oG\’s/6 Milliseconds
Rating at 24VDC: 150 Milliamps
Voltage Breakdown: 1000VAC between mutually
insulated parts
Contact Resistance:25 milliohms max on newswitch
lnsulation: 1,000 megaohms minimum
Application：
APPLICATIONS
? Communications 通信設備
? Data entry 數據錄入設備
? Hand-held control modules 人工控制手柄
? Outdoor controls 戶外電子設備
? Mass transport controls 公共交通車輛控制
? Instrumentation 儀器儀表

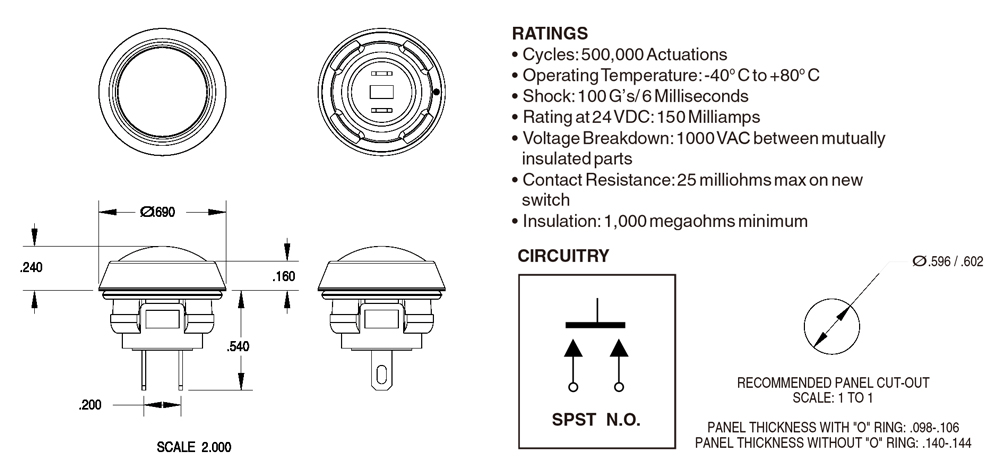

DRAWING
ORDER CODING DIAGRAM
