CLASSIFICATION
PRODUCT MODEL:PBM10-11Z-H-NNN-S0
PBM10-11Z-H-NNN-S0
PRODUCT SPECIFICATION:
Rating:3A 125VAC
:1.5A 250VAC
Contact Resistance:50mΩ Max
Insulation Resistance:DC 500V 100MΩ Min.
Dielectric Strength:AC 1000V 1 minute
Total Travel:2.0±0.5mm
Opearating Force:400±100gf
Electrial Life:10,000 cycles
Mechanical Life:5,0000 cycles
Openrating Temperature:-20℃~85℃
Application：
電子門鎖系統(tǒng) Electronic lock system
酒店設備 Hotel equipment
通信醫(yī)療設備 Communication medical equipment
小家電 Small home appliance
航空航天船舶 Aerospace ship
汽車周邊產(chǎn)品 Automobile peripheral products

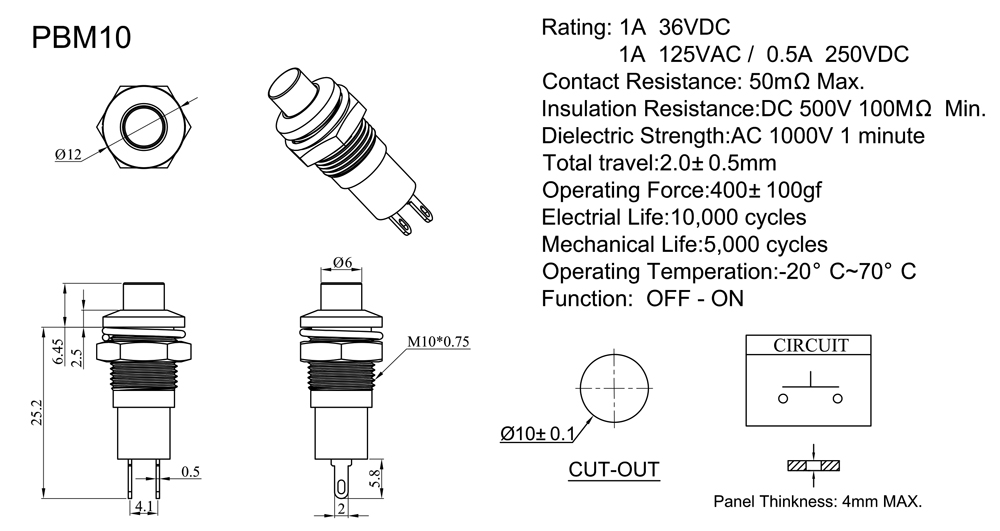

DRAWING
ORDER CODING DIAGRAM
