CLASSIFICATION
PRODUCT MODEL:PS12-M-F-NNN-S0
PS12-M-F-NNN-S0
PRODUCT SPECIFICATION:
Circuit :SPST
Current rating :0.1A/ 2A
Voltage rating :24VDC/125VAC
Dielectric withstanding voltage:1000VAC for 1 minute
Contact resistance :50mΩ Max
lnslation resistance :100MΩ Min
Full Travel :2.5mm±0.5mm Lock Travel :1.5mm±0.5mm
Operating Force :300±100gf
Mechanical Life :Over 1,000,000 cycles
Electrical Life :Over 100,000 cycles
Manual Welding :350°C for 3 seconds Function:OFF-ON
Operating temperature :-20°C~+85℃
Level of protection :lP65
Current rating :0.1A/ 2A
Voltage rating :24VDC/125VAC
Dielectric withstanding voltage:1000VAC for 1 minute
Contact resistance :50mΩ Max
lnslation resistance :100MΩ Min
Full Travel :2.5mm±0.5mm Lock Travel :1.5mm±0.5mm
Operating Force :300±100gf
Mechanical Life :Over 1,000,000 cycles
Electrical Life :Over 100,000 cycles
Manual Welding :350°C for 3 seconds Function:OFF-ON
Operating temperature :-20°C~+85℃
Level of protection :lP65
Application：
電子門鎖系統(tǒng) Electronic lock system
酒店設備 Hotel equipment
通信醫(yī)療設備 Communication medical equipment
小家電 Small home appliance
航空航天船舶 Aerospace ship
汽車周邊產(chǎn)品 Automobile peripheral products

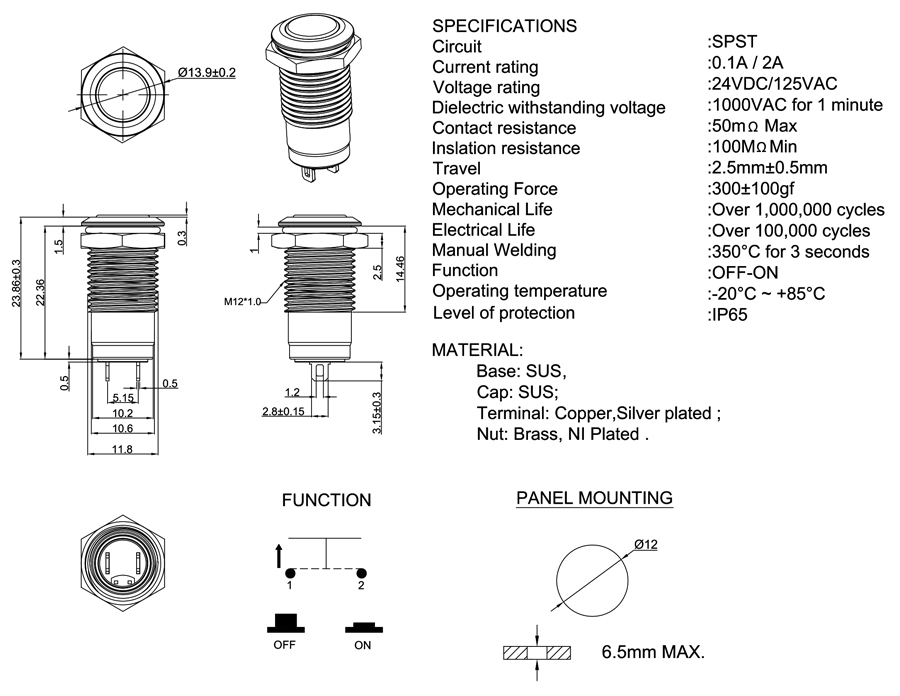

DRAWING
ORDER CODING DIAGRAM
