CLASSIFICATION
PRODUCT MODEL:PBM25-12M-F-PU3-S0
PBM25-12M-F-PU3-S0
PRODUCT SPECIFICATION:
Rating:5A 250VAC max;:2A 36VDCmax
Contact Resistance:50MΩ Max.;
Dielectric Strength:1000VAC for 1 Minute;
Total Travel:2.8±0.5mm;
Operating Force:600±200gf;
Mechanical Life:200,000Cycles;
Load Life:50,000cycles;
Operating Temperature:-20°C~70°C；
Function:ON-OFF OFF-(ON)
Application：
? Outdoor Controls ·戶外控制
? Security Equipment ·安全設備
? Medical Equipment ·醫療設備
? Food Processing Equipment ·食品加工設備
? Military Equipment ·軍用設備
? Industrial Machinery ·工業機械
? Transportation: Mass-Transit, Lift Trucks
·運輸: 大眾運輸, 起重卡車
DRAWING

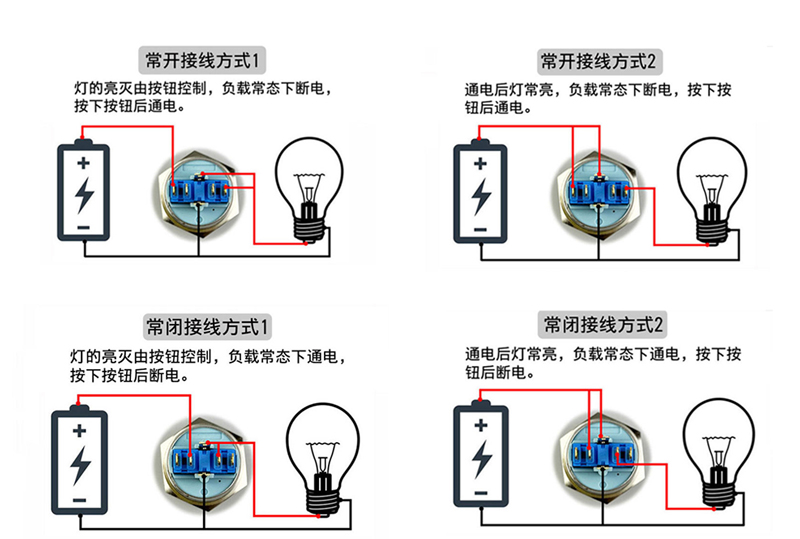

ORDER CODING DIAGRAM
