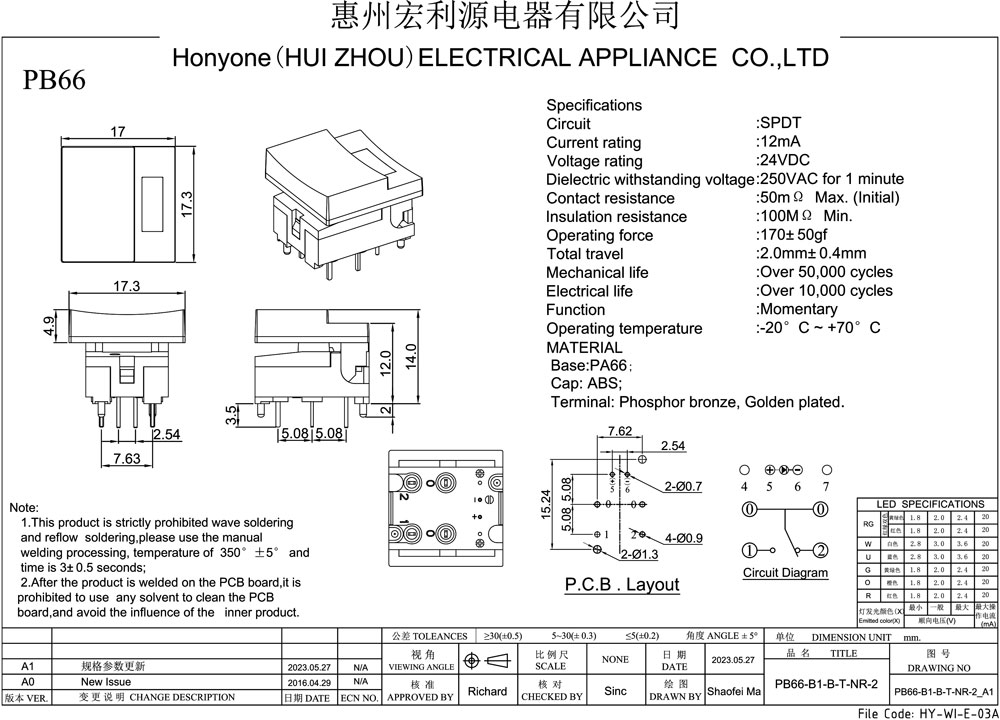

產品型號：PB66-B1-B-T-NR-2
PB66-B1-B-T-NR-2
產品規格：
Circuit :SPDT
Current Rating :12mA
Voltage Rating :24VDC
Contact Resistance :50mΩ Max.(intial)
Insulation Resistance :100MΩ Min.
Operating Force :170±50gf
Total Travel :2.0±0.4mm
Opearating life :500,000 cycles
Soldear Specifications :350°C for 3 Seconds
Function :Momentary
Openrating Temperature:-20°C~ +70°C
應用領域：
Stage Lighting control equipment
舞臺燈光控制設備
Video processor 視頻處理器
Matrix Controller 矩陣控制器
Security equipment 安防設備
Cashier Equipment 收銀設備
